Create Azure IoT Hub

Sending telemetry data from remote PLC to the outside or to the cloud is pretty hard. Most of the machines are behind locked down networks or behind CGNAT. No way for direct communication to the open internet. Which is good for security but it makes life hard for the Engineers working to collect telemetry data such as recent alarms, production speeds, breaks downs, authentication history and etc.

That's where Azure IoT Hub comes to picture. Works anywhere. Even behind the firewall with secure socket communications with TLC. End user can bring their own certificates.

Getting started

On Microsoft Azure everything is under a resource group. It helps end user to organise their resources. User might have different production lines in the given factory, resources belongs to each machine or machines can organised into different resource groups.

Create Resource group

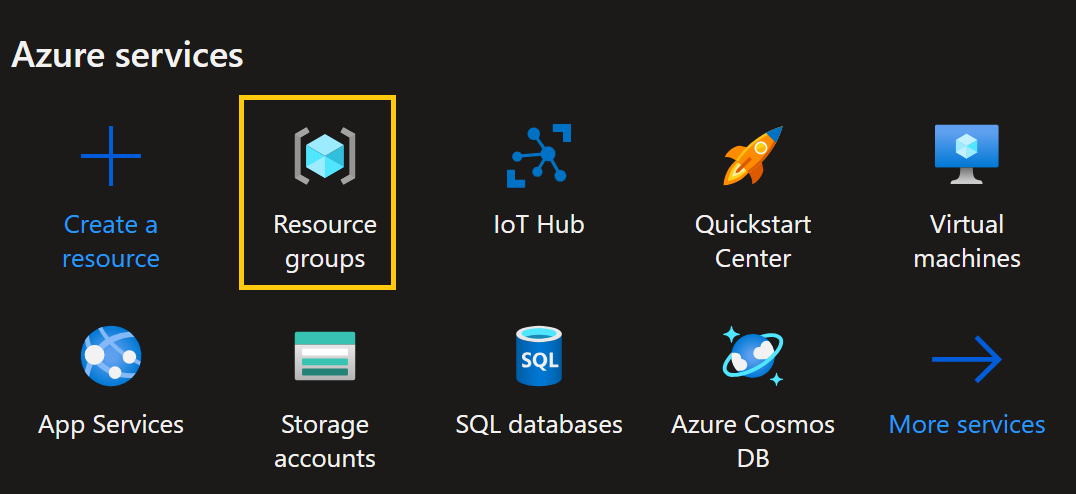

On Azure's portal, select Resource Group.

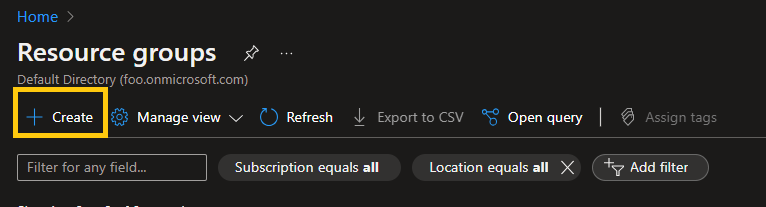

Click on + Create to create a new resource group for our IoT Hub.

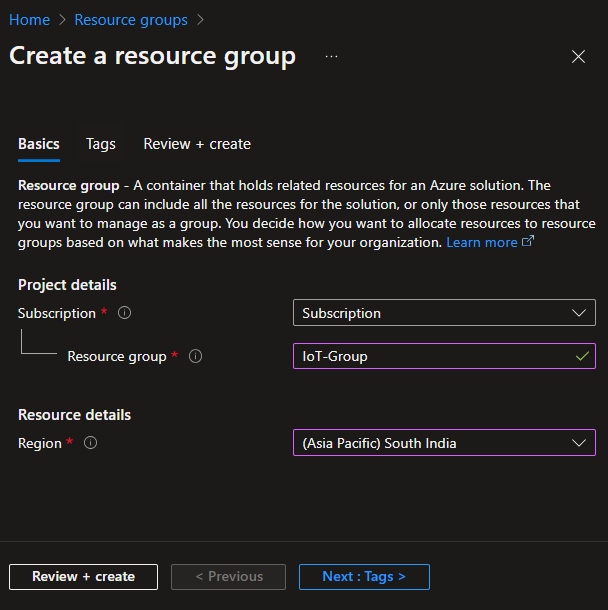

Enter the name for resource group and select the nearest data centre to your desired location.

It might take up to 2 minutes to complete the task. Once completed, user will receive a notification.

Create IoT Hub

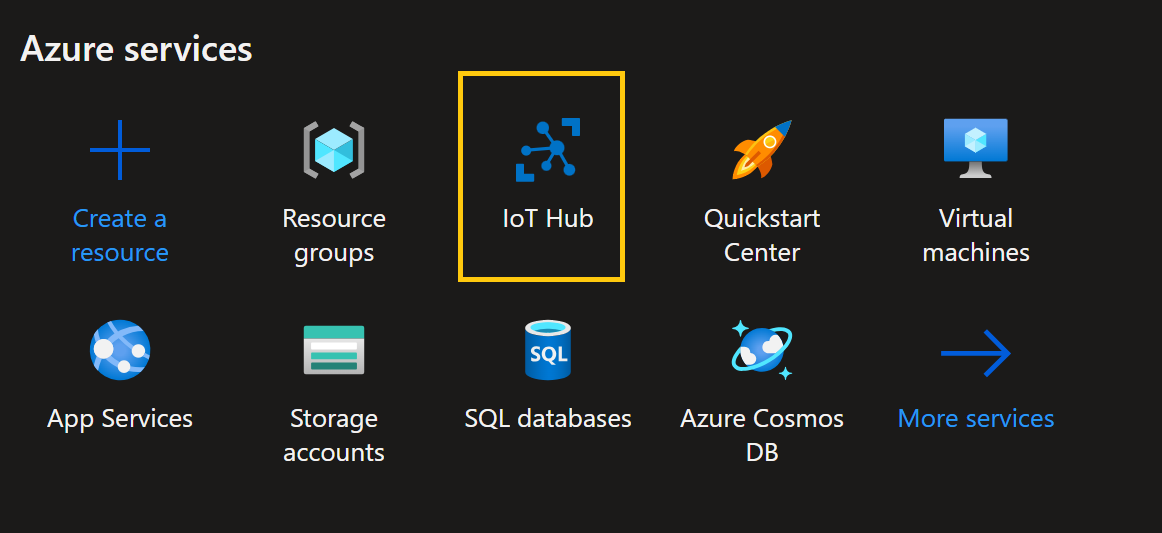

To create IoT Hub, Go to portal home page or go to all services and select IoT Hub

Click on + Create to create the IoT hub.

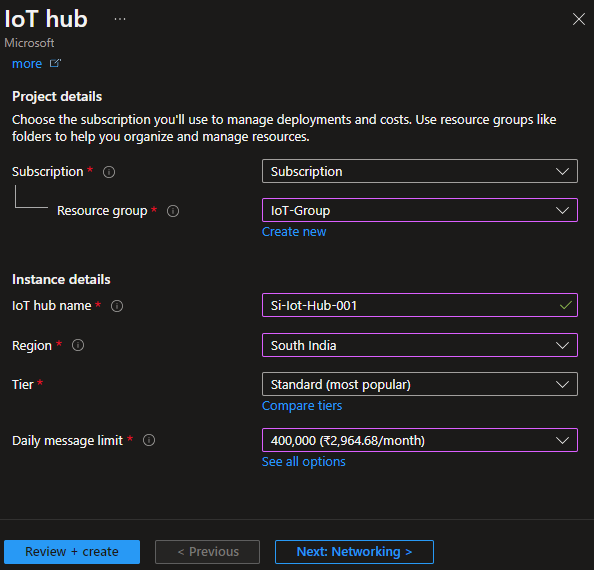

Select the resource group which was created earlier and select the remaining details based on the requirement and click on Review + Create.

note

Tier and Daily Message Limit can be upgraded in the future. Start with low when testing.

caution

IoT hub name should be unique, Not only to your account but to the entire Azure Network.

Create IoT Device

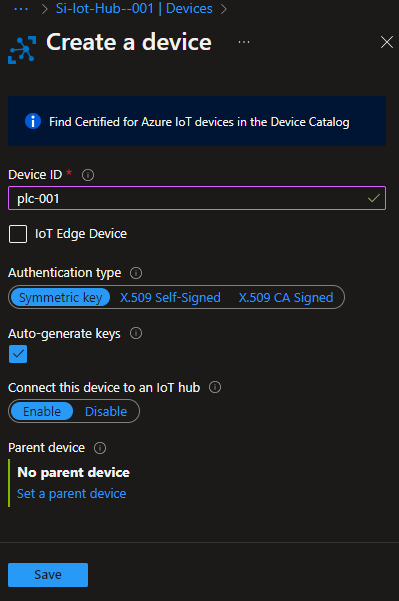

Navigate to created IoT Hub and Select Devices Under Device Management. Select Add Device.

Click save to create device.

Create Module Identity

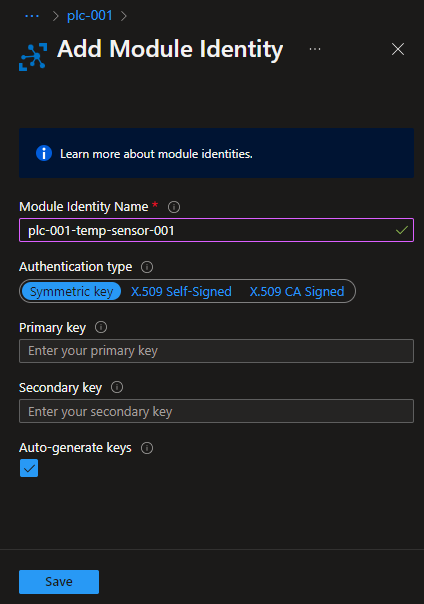

Device might have multiple sensors or IO Modules. With modules, data can organised. To add module, Select Add Module Identity

Add relevant name and click save to add the module. Multiple modules can be add to the device and can send the data in between the modules.

Connection

To connect to the Azure IoT Hub, PLC/Motion Controller needs Client id, Module id, Username and shared access signatures(SAS token) as a Password. By providing SAS token, access can be limited that particular device.

Client Id

syntax of client ID to {device-id}/{module-id}. Here it would plc-001/plc-001-temp-sensor-001.

Username

syntax of the Username is

<hubname>.azure-devices.net/{device_id}/{module_id}/?api-version=2021-04-12.

Here it would be as following

Si-Iot-Hub--001.azure-devices.net/plc-001/plc-001-temp-sensor-001/?api-version=2021-04-12

caution

Select the latest api-version available. Selecting wrong version might cause unintentional behaviour.

SAS Token

To generate SAS Token, Open Azure CLI and run following

az iot hub generate-sas-token -n {iothub_name}

Copy the generated token and add it as a password.

WILL Topic

To publish messages, WILL topic is required, syntax as follows.

devices/{device-id}/modules/{module-id}/messages/events/

It would be

devices/plc-001/modules/plc-001-temp-sensor-001/messages/events/

Receiving Messages

To listen to the messages

devices/{device-id}/modules/{module-id}/#

It would be

devices/plc-001/modules/plc-001-temp-sensor-001/#
